310x140x150 میلی‌متر

1990 گرم

220 ولت

برق

7Inch TFT

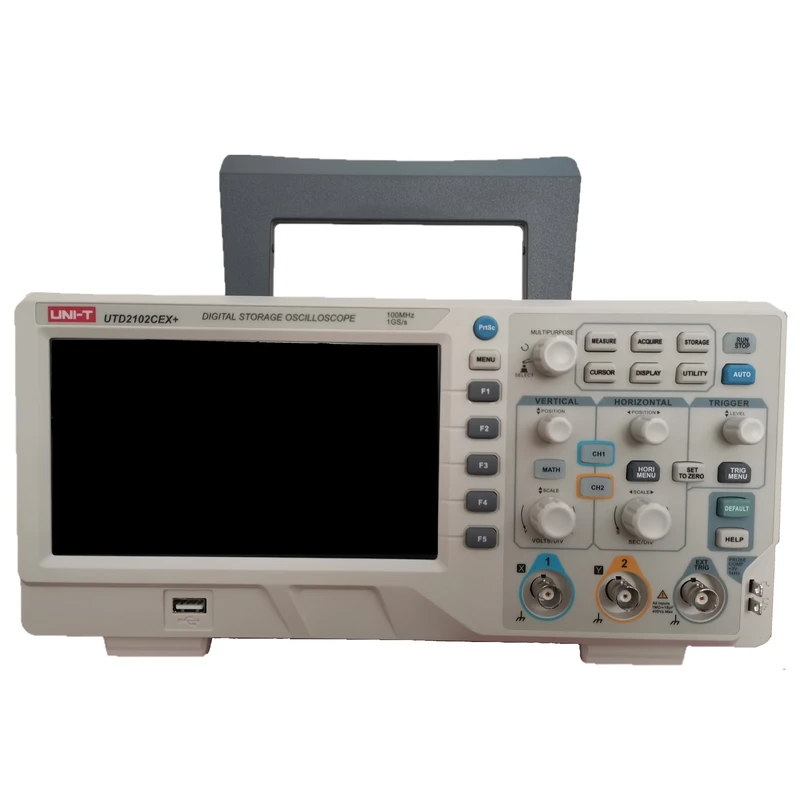

دو کانال دارای کلید تنظیم اتوماتیک موج پهنای باندگسترده 100 مگاهرتزی نرخ نمونه برداری یک میلیارد نمونه بر ثانیه Model UTD2102CEX+ Channels 2 Bandwidth 100MHz Sampling rate 1GS/s Rise time ＜3.5ns Memory depth 64kpts Waveform capture rate >5, 000wfms/s Vertical scale (V/div) 1mV/div~20V/div Time base scale (s/div) 2ns/div~50s/div Timing accuracy ≤±（50+2 × service life ）ppm Time base mode Y-T、X-Y、Roll Storage methods Setup, wave, bitmap Trigger types Edge, pulse width, alternate，Slope, video Mathematical operations ＋, －, ×, ÷, FFT Auto measurements Pk-Pk , Ampl, Max , Min, Low, Middle, High, Mean, RMS，OverSht,, PreSht, Period, Frequency、Rise, Fall, +Width，-Width, -Duty, +Duty,Delay,Phase，FRR,FRF,FFR,FFF,LRR,LRF,LFR,LFF,34 paramet ers in total Displayed measurements Display 5 measurements at the same time Frequency counter 6 bits Interface USB OTG,Pass/Fail General Characteristics Power 100-240VAC, 45-440Hz Display 7 inches TFT LCD, 800×480 Product color White and grey Product net weight 3.5kg Product size 336mm×164mm×108mm Standard quantity per carton 2pcs Standard carton measurement 450mm x 420mm x 280mm Standard cartoncessories power cable UT-D05:USB interface cable UT-P04:Passive Probe x 2 (1x,10x switchable,100MHz) gross weight 8kg Ordering Information UTD2102CEX+,100MHz,1GS/s,64kpts,2-Channel) User manual and Communication4s control software(Electronic file) Optional accessory UT-M01:LAN module
